Configuring the application for UCP

OZEKI SMS supports the UCP protocol, to connect to an SMSC over the Internet or other private TCP/IP network. Some mobile operators provide UCP connections for higher volumes of SMS traffic. In order to configure this connection you must perform the following steps:

After installation select the Preferences... from the Server menu.

how to configure server preferences in ozeki sms server
Figure 1 - Server preferences

When this menu item is selected, the Server Options form opens.

how to uninstall gsm devices in ozeki sms server
Figure 2 - Uninstalling a GSM device

Select the GSM Device1 in the Installed GSM phones box and click on the Uninstall button. When you uninstalled the GSM device successfully you can start to install the UCP connection.

how to install a new ucp connection in ozeki sms server
Figure 3 - Installing UCP connection in Ozeki SMS Server

Select the UCP connection to the SMSC from the GSM Device for SMS messaging combobox and press Intall button. In the Installed GSM phones box will appear the ucp1.

how to configure ucp connection in ozeki sms server
Figure 4 - Configuring the UCP connection

After installing the UCP driver click on the Configure button to start the configuration. On the configuration screen you should provide the neccessary login information to connect to the server.

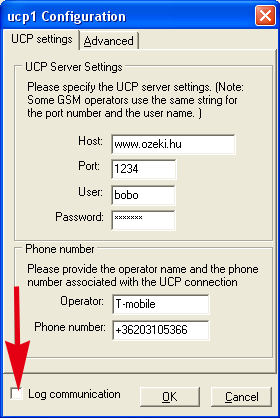

ucp configuration in ozeki sms server
Figure 5 - UCP configuration

When you fill in the Phone number text box you can modify the phone number to text.eg.: OZEKI

Testing the connection

After finishing these settings close the ucp1 Configurating form by clicking on OK and start the SMS sending and receiving service by clicking on the "Start" button on the main screen of the application.

If you select the Server Events folder on the left, you can see the startup message of the server. This message should be: "SERVER_STARTUP ok"

server events in ozeki sms server
Figure 6 - Server events

Once the application is started you can view the UCP communication log by clicking on the ucp communication menu item in the Server menu. (This menuitem becomes visible after you have installed the ucp driver)

smpp evetns in ozeki sms server
Figure 7 - SMPP events

Sending your first SMS

Once the application is installed and configured properly, you can send an SMS by clicking on the Create SMS icon. This brings up the SMS composer, where you can specify the phone numbers and the message text. Make sure you specify the phones numbers in international format. e.g.: +36209937723. When the message is written, you can send it by clicking on the Send button.

message composer in ozeki sms server
Figure 8 - Message composer

Once you installed the server, you can configure plugins or you can start developing applications. Good luck!
