PBXpress, how to create a SIP account

This guide shows you how to create an extension on PBXpress. The extension can be used with Ozeki 10. Before you start to configure this solution, it is assumed that you have already installed your PBXpress on your server.

Configure PBXpress

In order to configure PBXpress, you need to login to your PBXpress server using its web interface. In this example I installed PBXpress on a computer of which IP address is 192.168.91.90. The URL of the web interface will be:
http://192.168.91.90/login.html
Navigate to this page using your web browser and login as admin (Figure 1).

login as admin

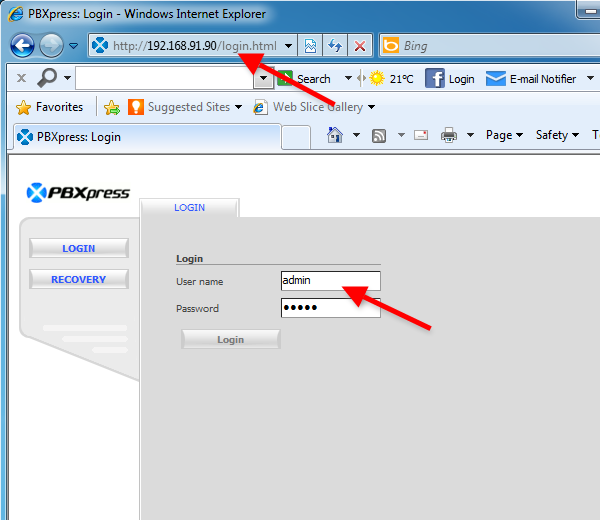

Figure 1 - Login as administrator

After login, the Extension screen will appear. Provide the details of the extension you wish to create, and click on 'Apply'. In this example I create an extension which name is 100 (Figure 2).

creating extension

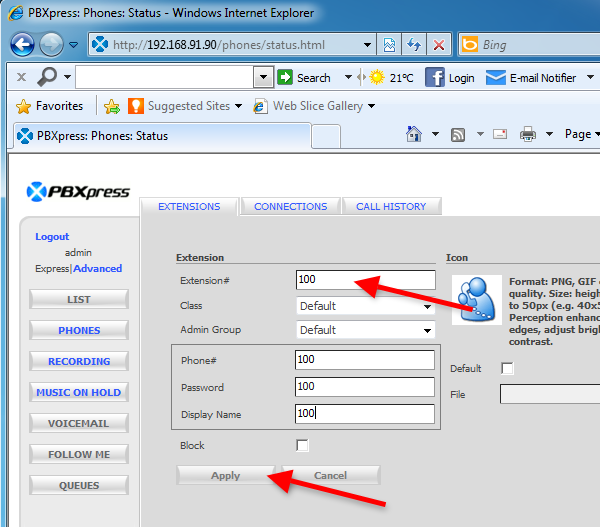

Figure 2 - Creating an extension

I have created three extensions. As you can see, I have registered a VoIP phone for extension 100
(Figure 3).

created extension
Figure 3 - Created extensions


Now the configuration is complete so you can start your phone lines and connect them with Ozeki 10.
